Selected regions of liquid resin are cured layer by layer.
SLA 3D PRINTING · FINE DETAIL · SMOOTH SURFACES

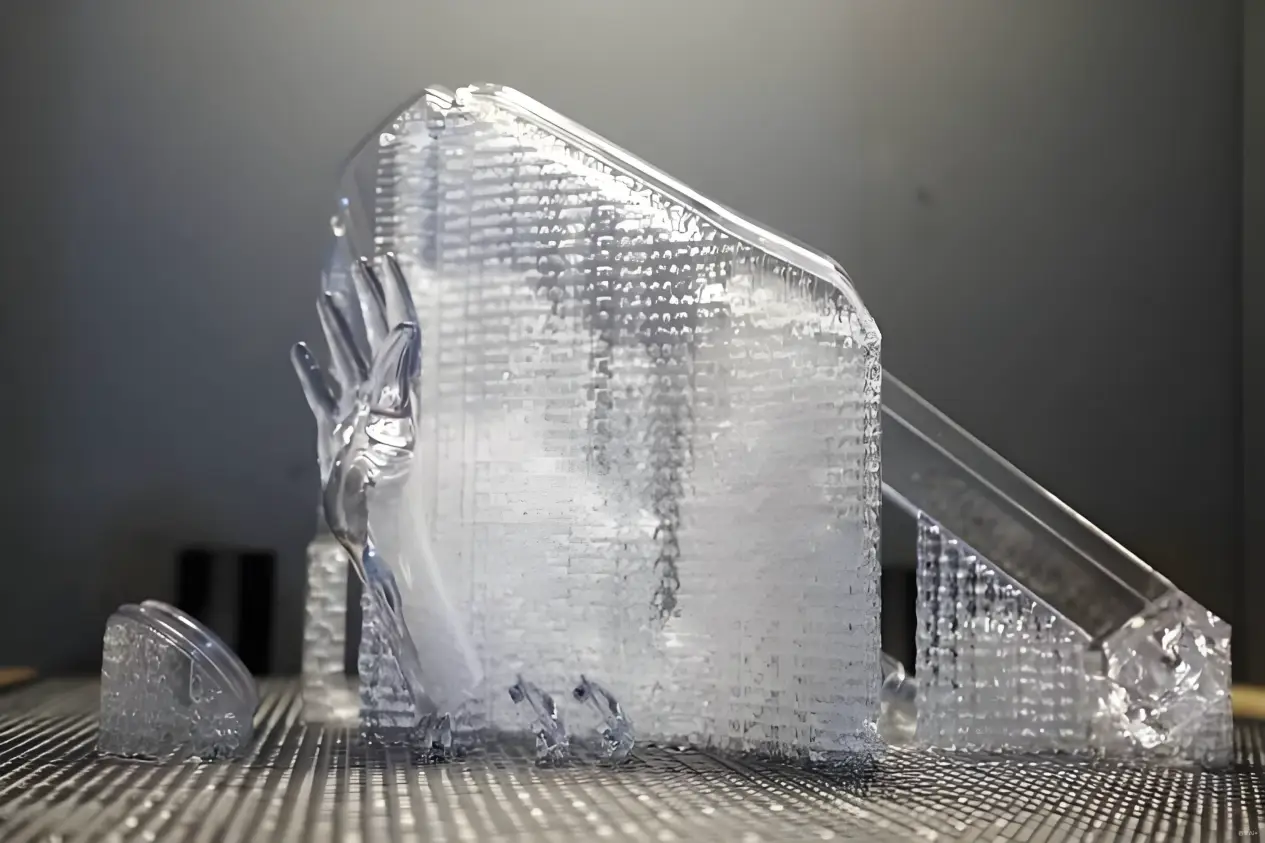

SLA 3D Printing Services for High-Detail Resin Parts
Produce high-detail resin prototypes with smooth surfaces, crisp features and strong visual fidelity.
- Fine-detail resin printing
- Clear, appearance and engineering resin options
- One-off prototypes through low-volume requirements
Encrypted upload · Confidential handling · Engineer review
PROTOTYPE PRIORITYDETAIL + FINISHRESIN / COSMETIC / CLEAR
SLAPHOTOPOLYMER RESIN
FINEDETAIL & FEATURES
CLEARFINISHING OPTIONS
QADRAWING-LED INSPECTION
DETAIL BEFORE TOOLING
Use SLA When the Prototype Must Communicate Visual Intent
Mockup reviews resin, orientation, supports, walls, drainage, curing, cosmetic expectations and dimensional requirements before production.
RESIN / ORIENTATION / SUPPORTS / CURING / FINISH01 / PROCESS FIT
When to Choose SLA 3D Printing
SLA is particularly useful when a prototype must communicate shape, detail, surface quality or visual intent.
01

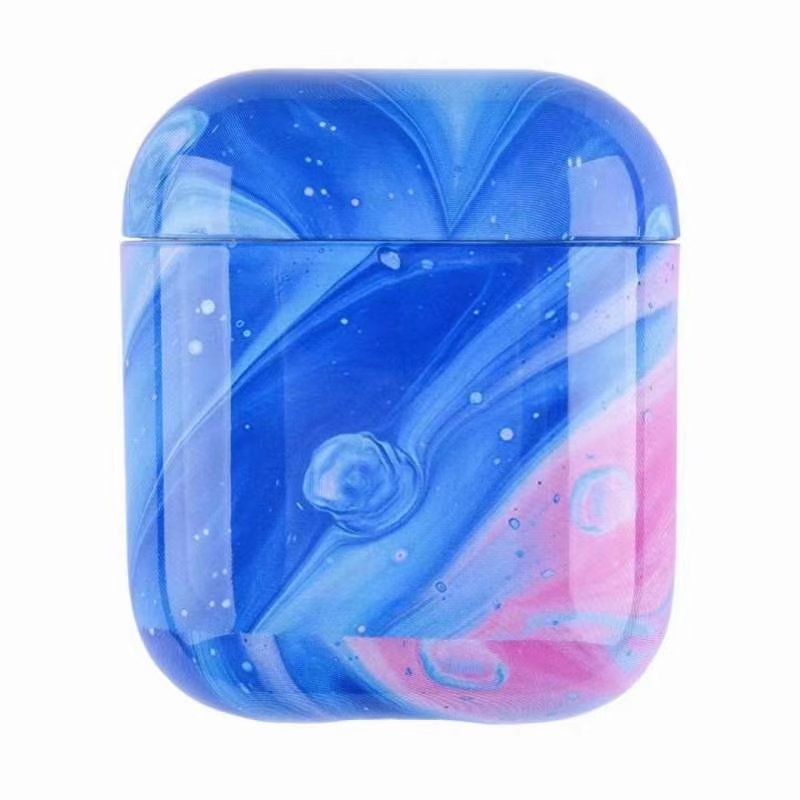

Appearance Models
Smooth curved geometry, sharp cosmetic edges and presentation surfaces for design review.
- TYPICAL PARTS
- Presentation prototypes · consumer products · ergonomic evaluation
02 / PROCESS COMPARISON
Choose Surface Detail or Production-Material Performance
A visually excellent SLA prototype may behave very differently from the final molded component. Mockup compares the requirement before recommending a route.

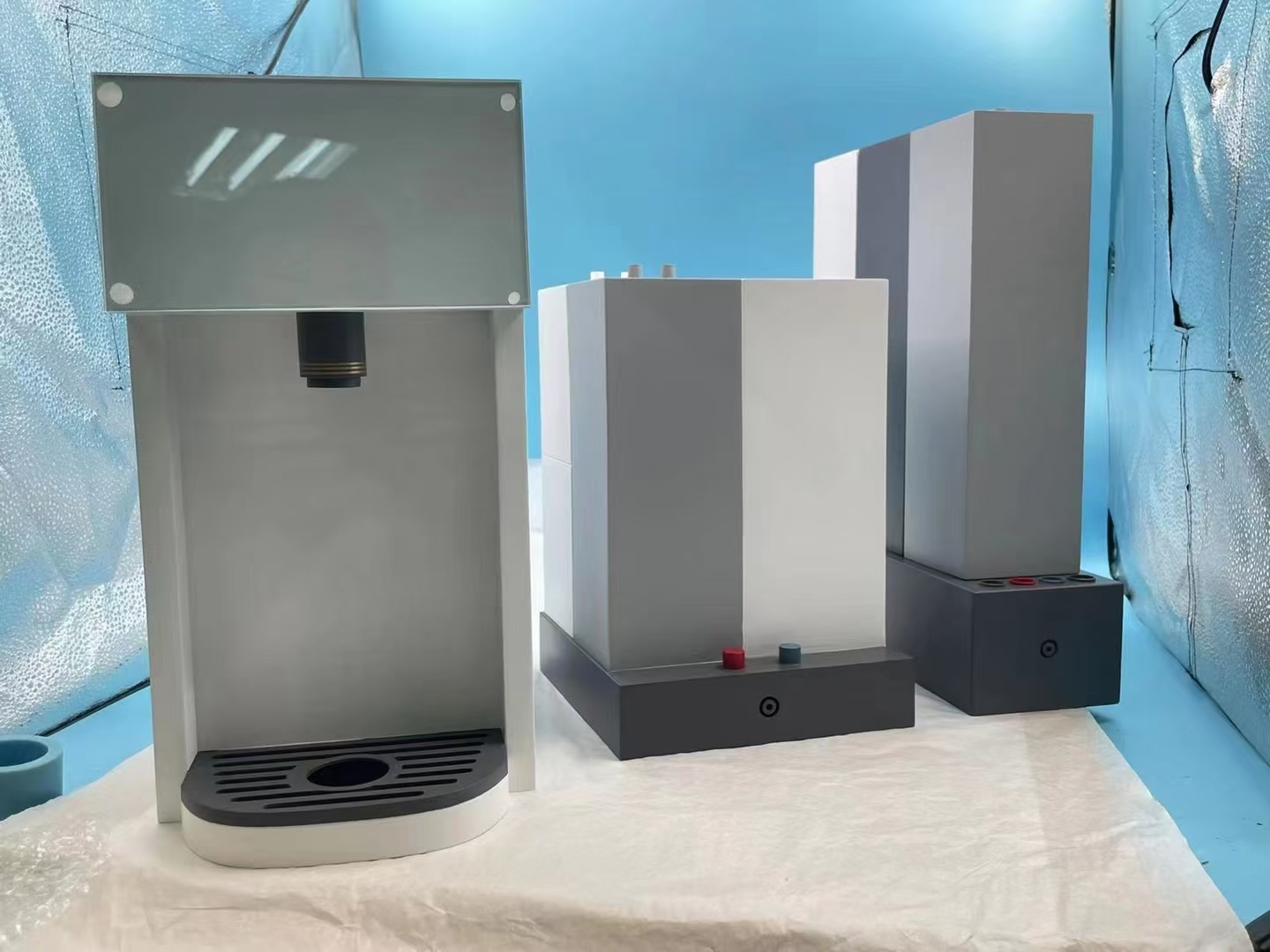

SLA
SLS / MJF
MOVEMENT
Liquid resin cured layer by layer
Powder-bed polymer fusion
COMPLEXITY
Fine visual and cosmetic geometry
Functional complex nylon geometry
SURFACE QUALITY
Smooth surfaces with secondary finishing
Textured production-like surface
EFFICIENCY
Support removal and curing required
No dedicated support structures
BEST FOR
Appearance models and detailed prototypes
Functional housings and batch parts
COST & INVESTMENT
Best when visual fidelity creates value
Best when mechanical behavior dominates
03 / SLA WORKFLOW
How SLA 3D Printing Works
Downstream cleaning, curing and finishing have a major influence on final appearance and dimensional results.
Resin Cleaning
Residual resin is removed using the controlled cleaning route.

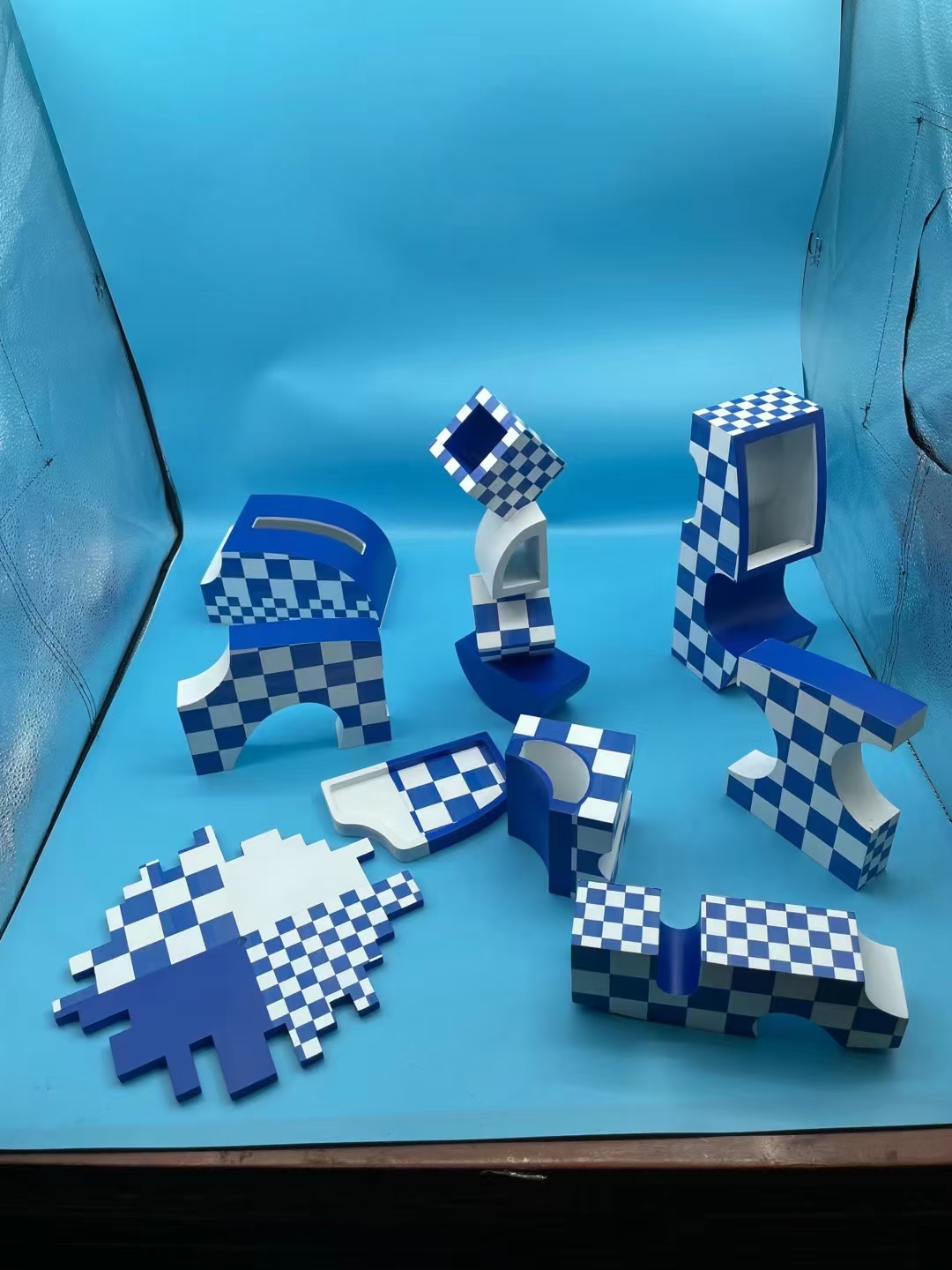

Support Removal
Supports are removed with critical surfaces protected.
Post-Curing
Light and heat complete the specified cure cycle.
Surface Preparation
Support marks and layer evidence are prepared for the target finish.
Finishing
Polishing, clear coating, painting, inserts or assembly are completed as agreed.
Inspection
Dimensions and cosmetic requirements are checked against the project scope.
04 / SLA RESINS
Select Resin Around What the Prototype Must Demonstrate
Names such as ABS-like or PC-like are useful shorthand; they do not mean the photopolymer is chemically or mechanically identical to a molded thermoplastic.
01

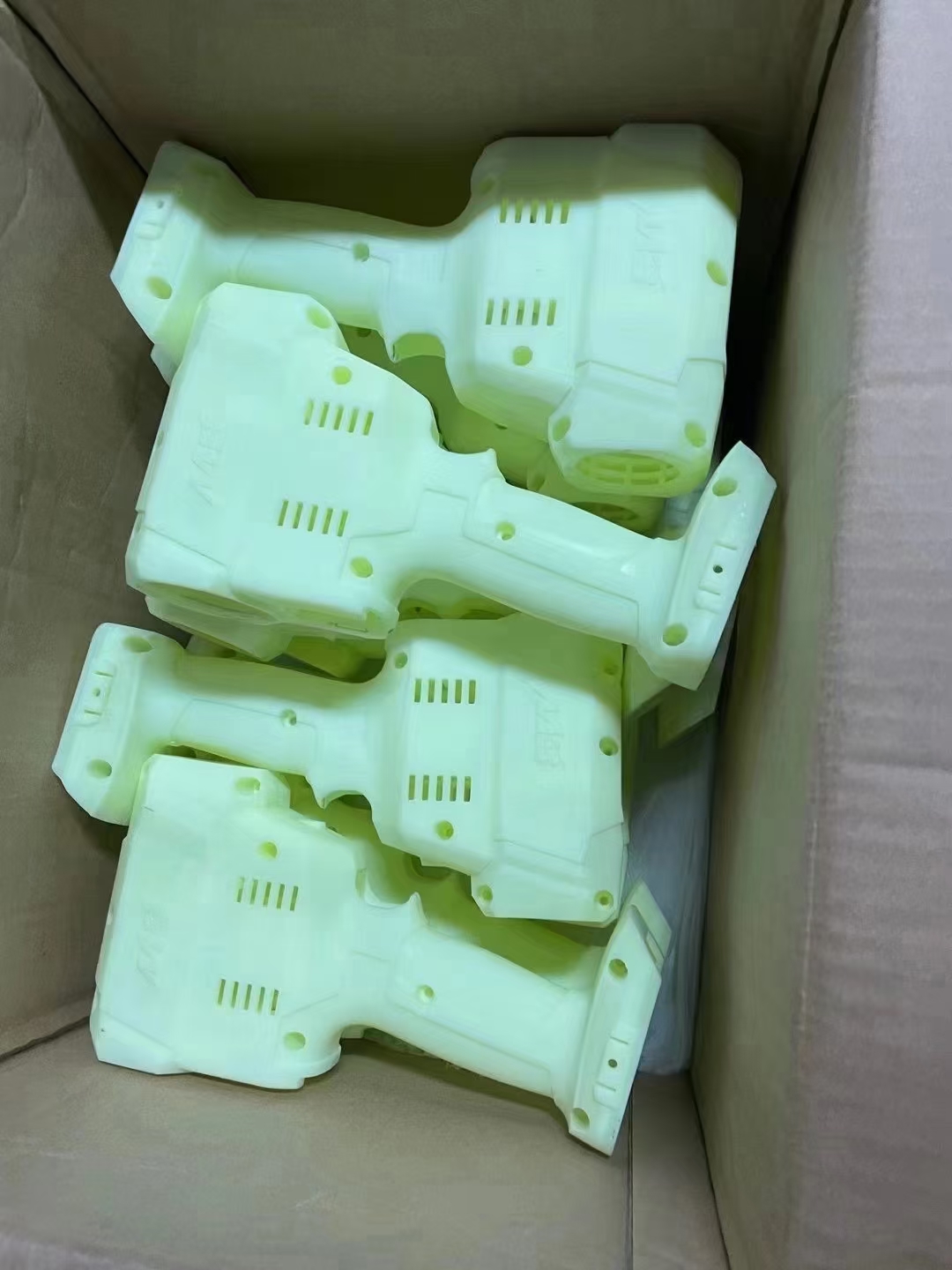

General-Purpose / ABS-Like
A balanced option for concept models, housings, fit checks, painted prototypes and presentation components.
- GRADES / OPTIONS
- Detail · stiffness · cosmetic finishing
05 / TECHNICAL RANGE

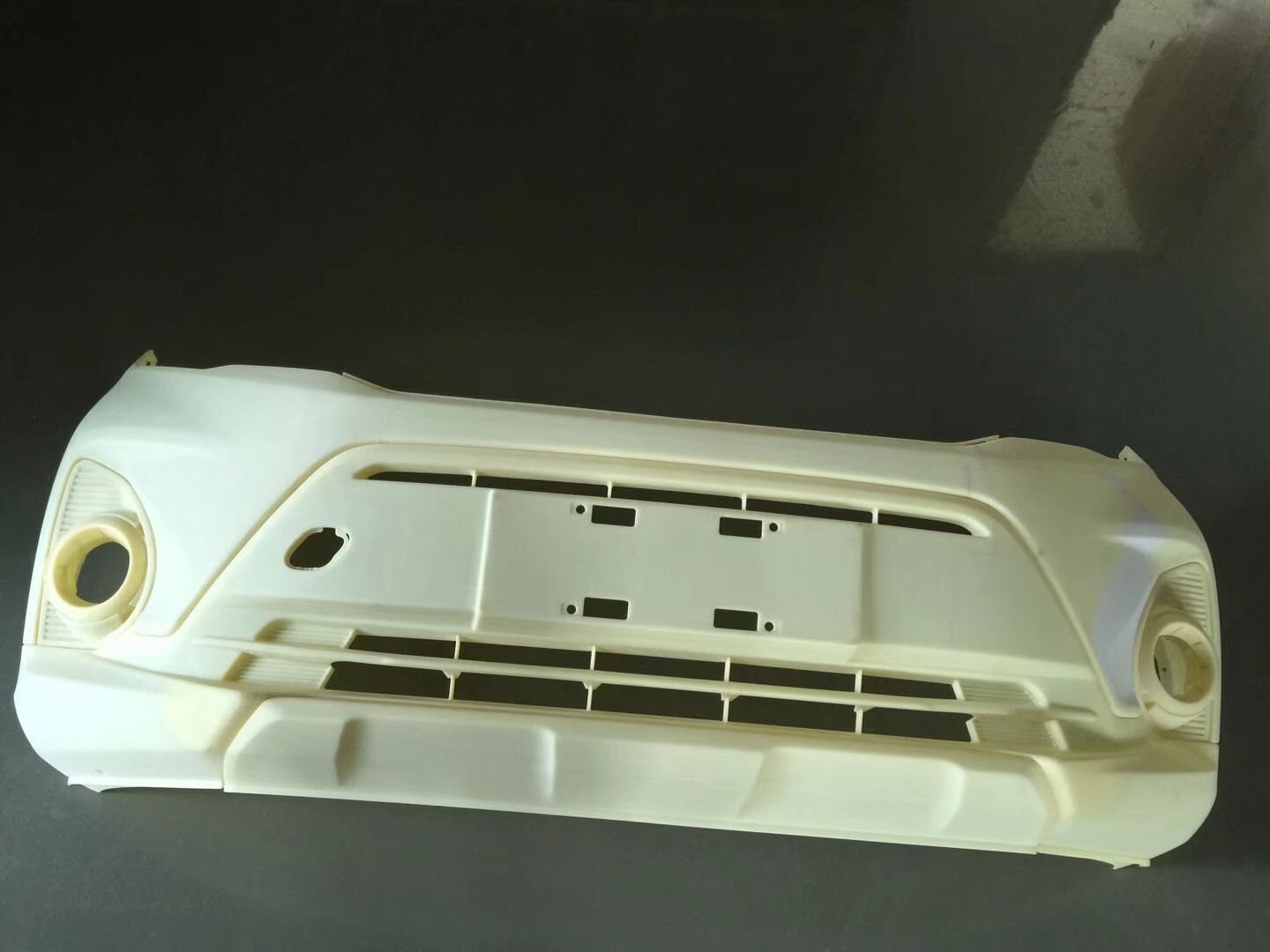

Confirm SLA Capability from the Actual Model
Build volume, layer thickness, wall thickness, holes, details, mating clearance and dimensional capability depend on resin, geometry, size, orientation and post-processing. Critical requirements are confirmed during engineering review.
06 / SURFACE & FINISHING
Surface Preparation Can Matter as Much as the Print
Define visible surfaces, support restrictions, gloss, texture, color and protected interfaces before production.
IMAGEFINISHAPPLICABLE MATERIALSCOLOR / APPEARANCEPROCESS NOTES
All SLA resins
Controlled contact marks
Place supports away from critical cosmetic and sealing surfaces

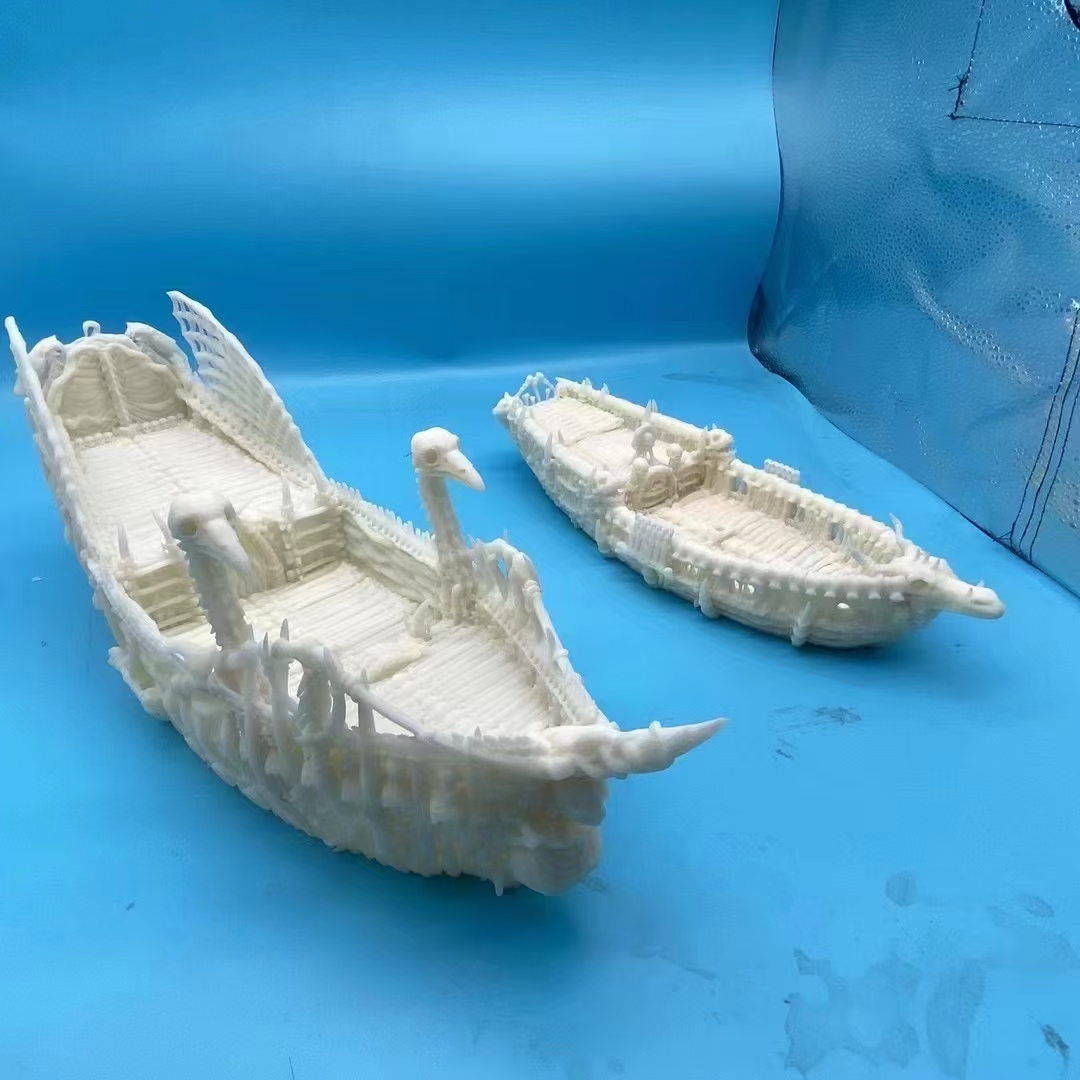

Accessible resin surfaces
Smooth to high-gloss
Progressive preparation improves appearance and transparency
Clear and translucent resins
Improved visual transparency
Internal inaccessible surfaces may remain less clear

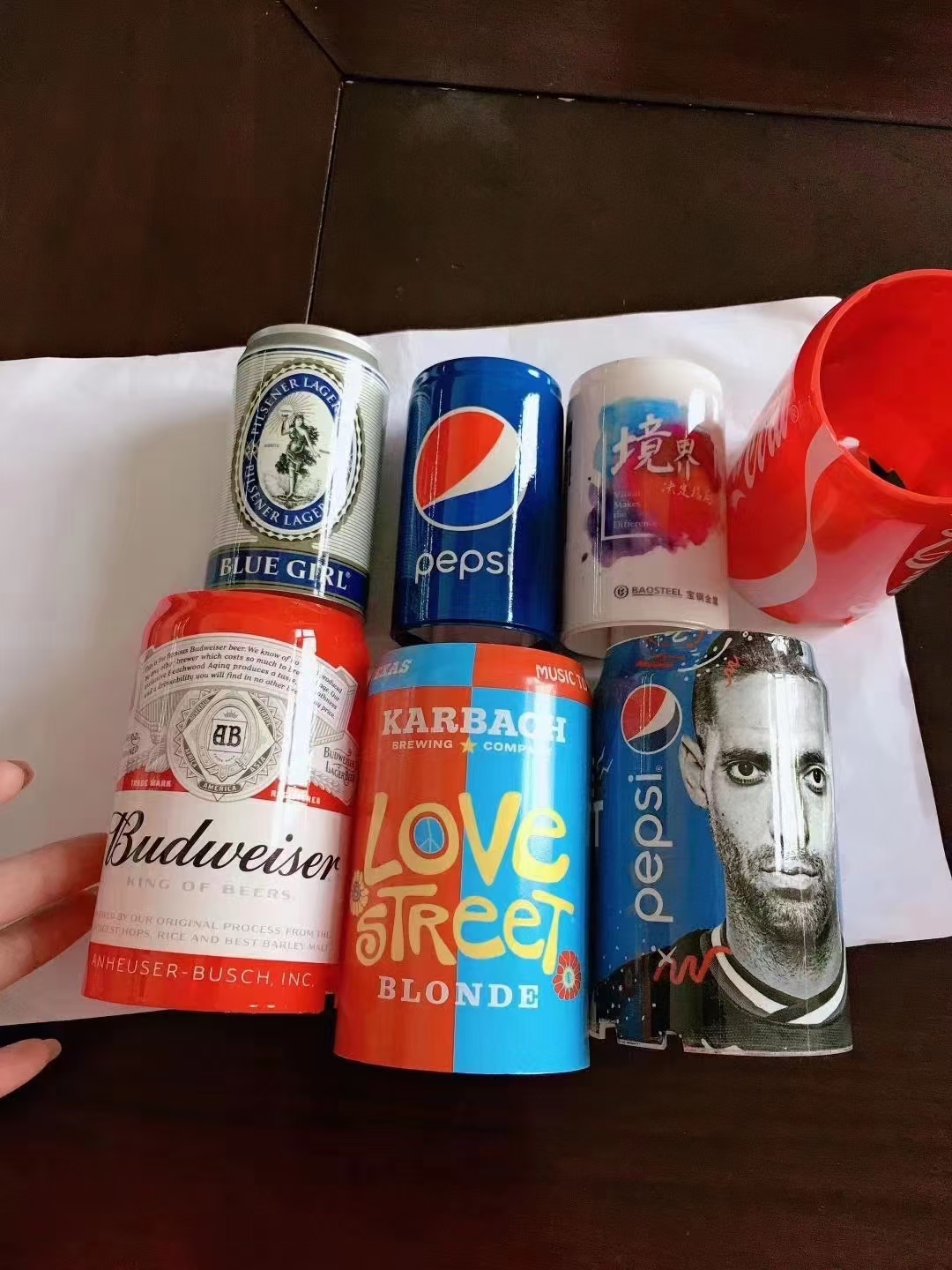

Appearance and engineering resins
Specified color and texture
Allow coating build around fits, holes and assembly interfaces

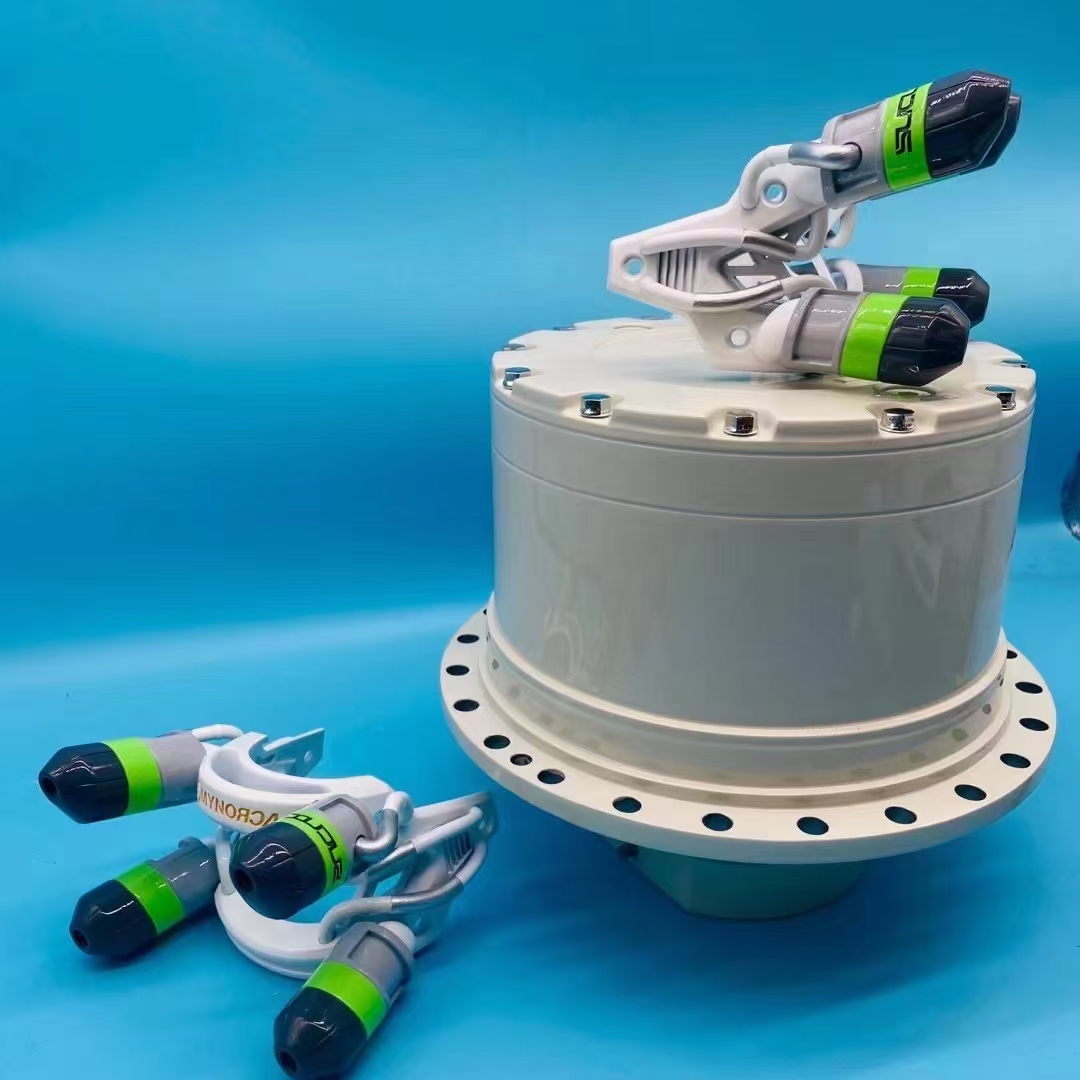

Compatible clear resins
Transparent or translucent color
Confirm sample standard and accessible finish surfaces

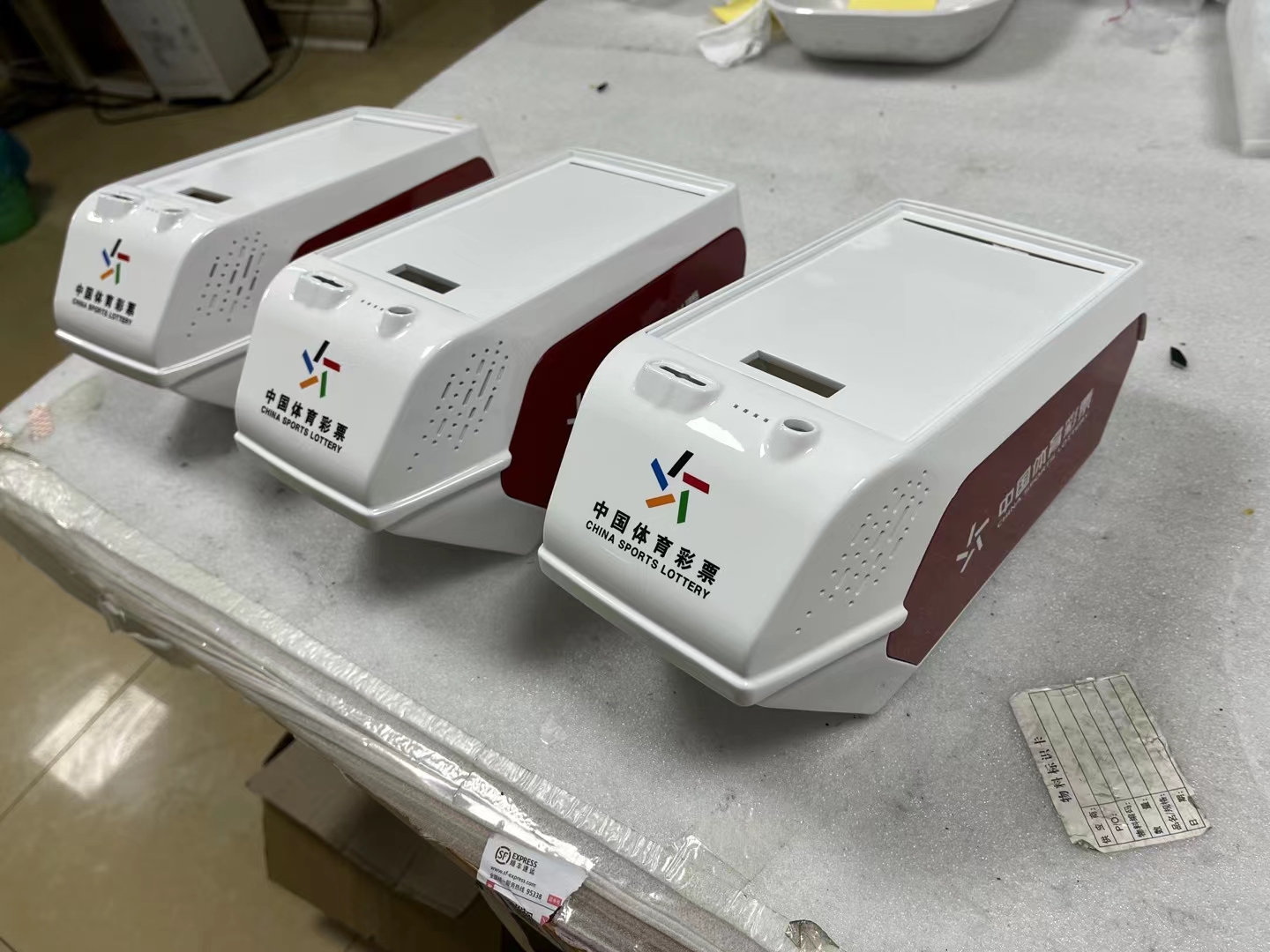

Suitable SLA geometries
Functional assembled prototype
Design bosses, access and installation loads around resin behavior
07 / DESIGN FOR SLA
Design the Part for Printing, Cleaning, Curing and Finishing
The most reliable route accounts for hollow volumes, drainage, suction, support access, coatings and assembly clearance from the start.
Hollow large volumes where appropriate
Review this feature against part size, orientation, resin, finish and functional purpose.
Add accessible drain holes
Review this feature against part size, orientation, resin, finish and functional purpose.
Avoid suction-cup geometry
Review this feature against part size, orientation, resin, finish and functional purpose.
Reinforce large flat surfaces
Review this feature against part size, orientation, resin, finish and functional purpose.
Place supports away from critical surfaces
Review this feature against part size, orientation, resin, finish and functional purpose.
Allow for paint and coatings
Review this feature against part size, orientation, resin, finish and functional purpose.
Define assembly clearance
Review this feature against part size, orientation, resin, finish and functional purpose.
Treat printed threads carefully
Review this feature against part size, orientation, resin, finish and functional purpose.
Separate cosmetic and dimensional priorities
Review this feature against part size, orientation, resin, finish and functional purpose.

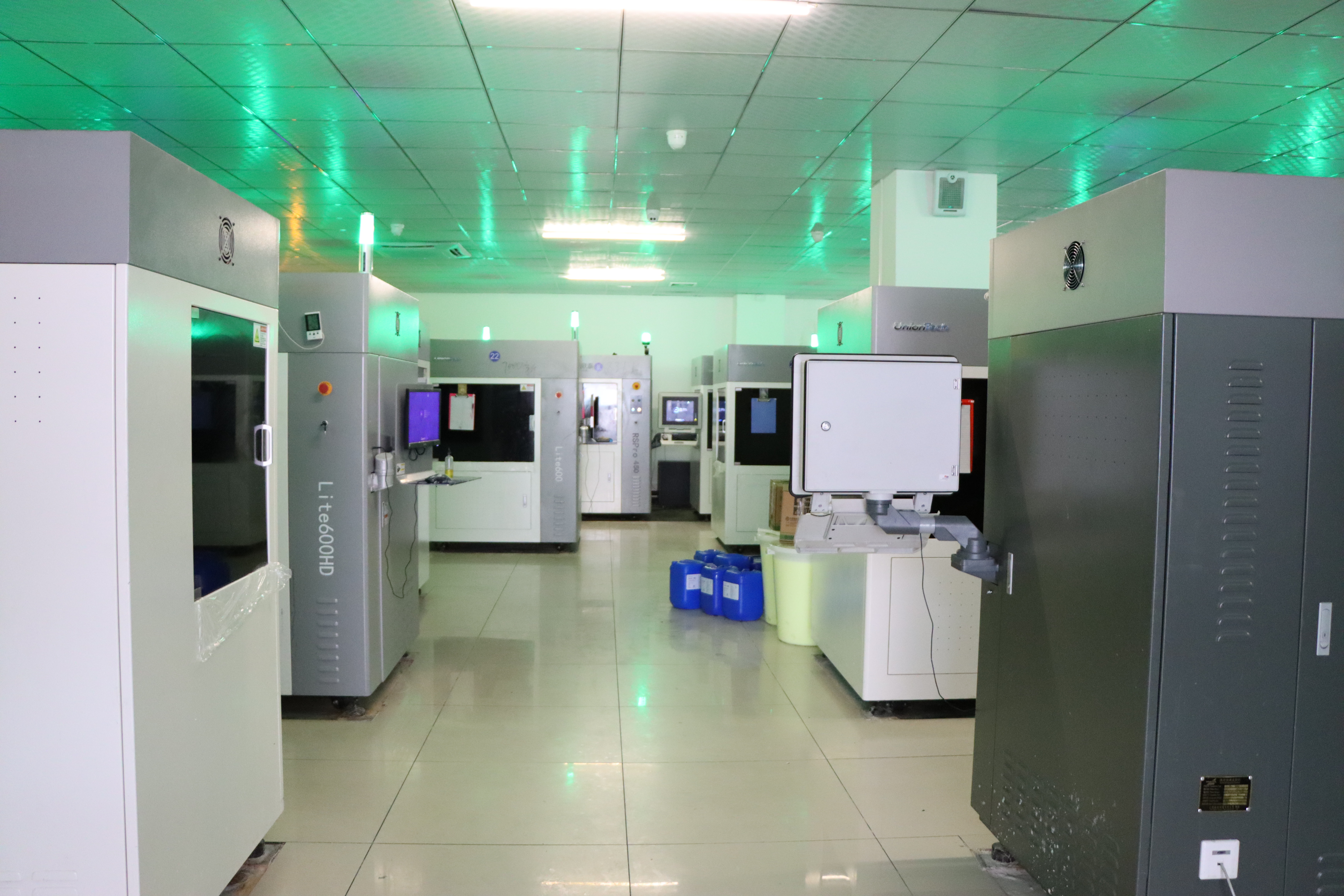

08 / QUALITY CONTROL
Inspect SLA Parts Around Their Intended Purpose
Mockup can coordinate dimensional and cosmetic inspection according to the drawing, visible-surface definition and prototype purpose.
- ✓Drawing-led dimensional inspection
- ✓Cosmetic surface review
- ✓Clear-part appearance review
- ✓Assembly and fit verification
- ✓Project-specific inspection records
09 / PROJECT EXAMPLES
SLA Project Examples
Representative routes using distinct images; final resin, finish and inspection are confirmed per project.
Clear Fluid-Flow Demonstration
Clear resin · controlled orientation · polishing and clear coating · visual path inspection.

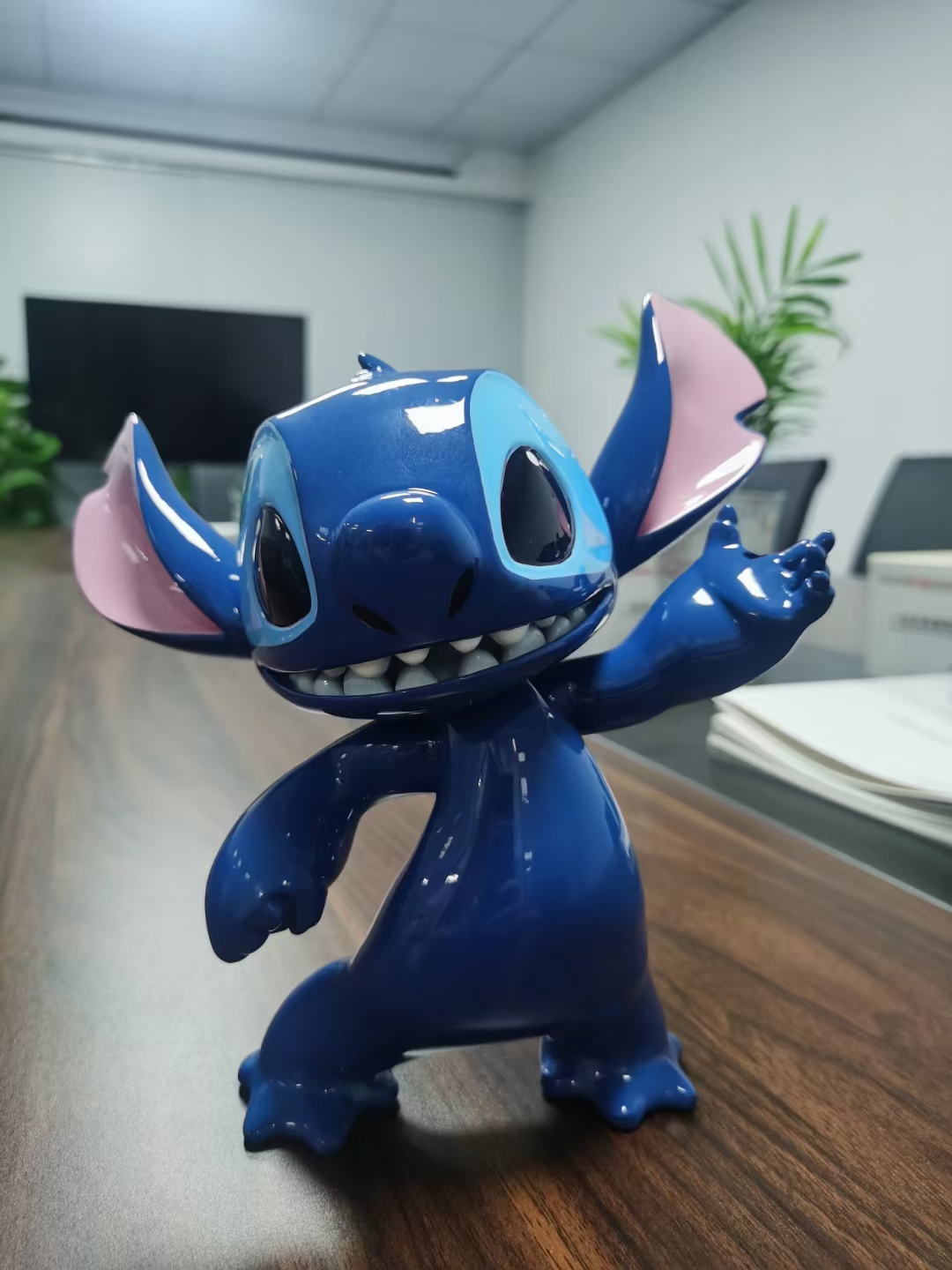

High-Detail Appearance Model
General-purpose resin · support control · sanding, primer and presentation paint.

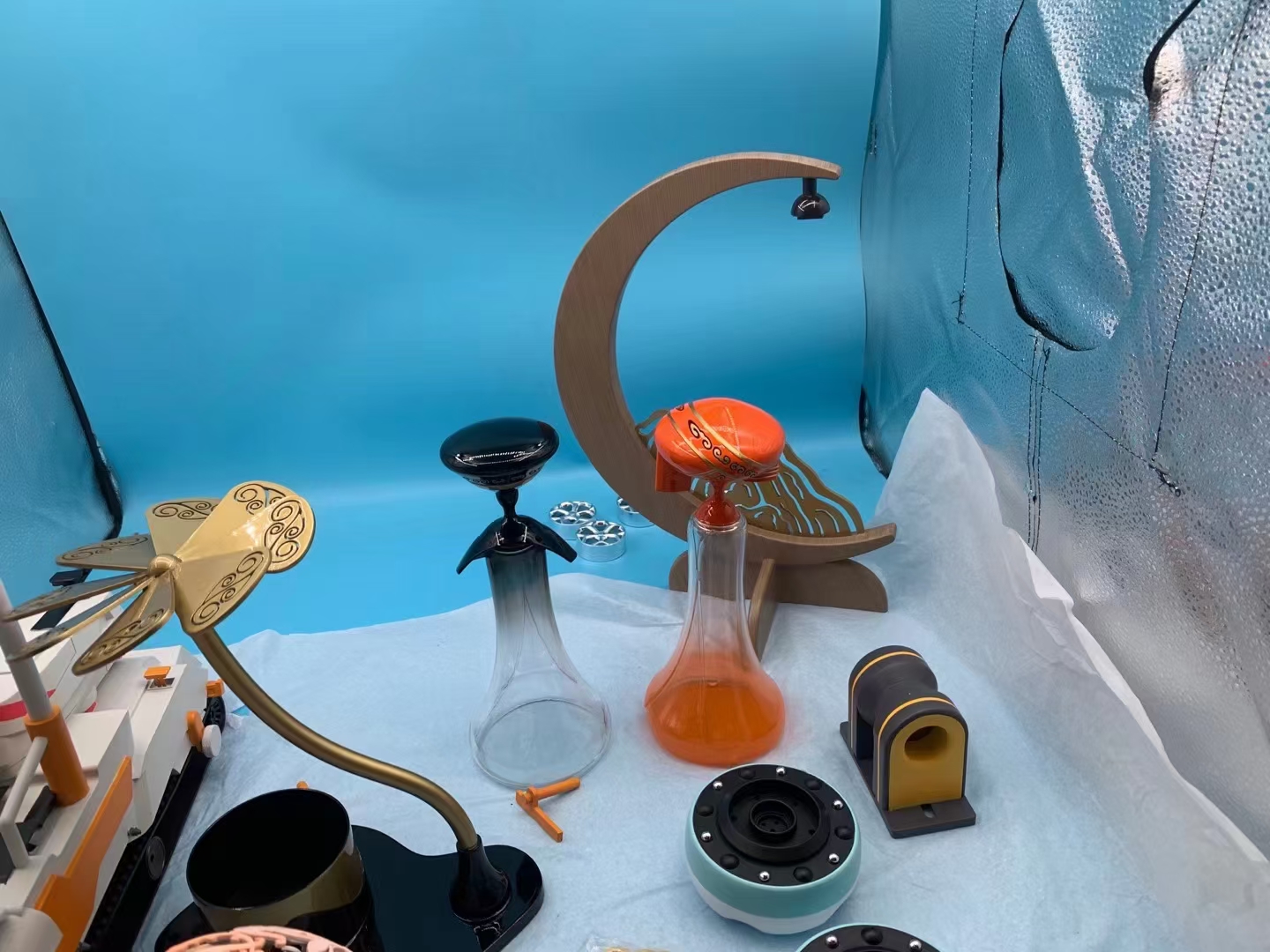

Vacuum Casting Master Pattern
Stable master resin · dimensional preparation · polished surfaces for downstream tooling.

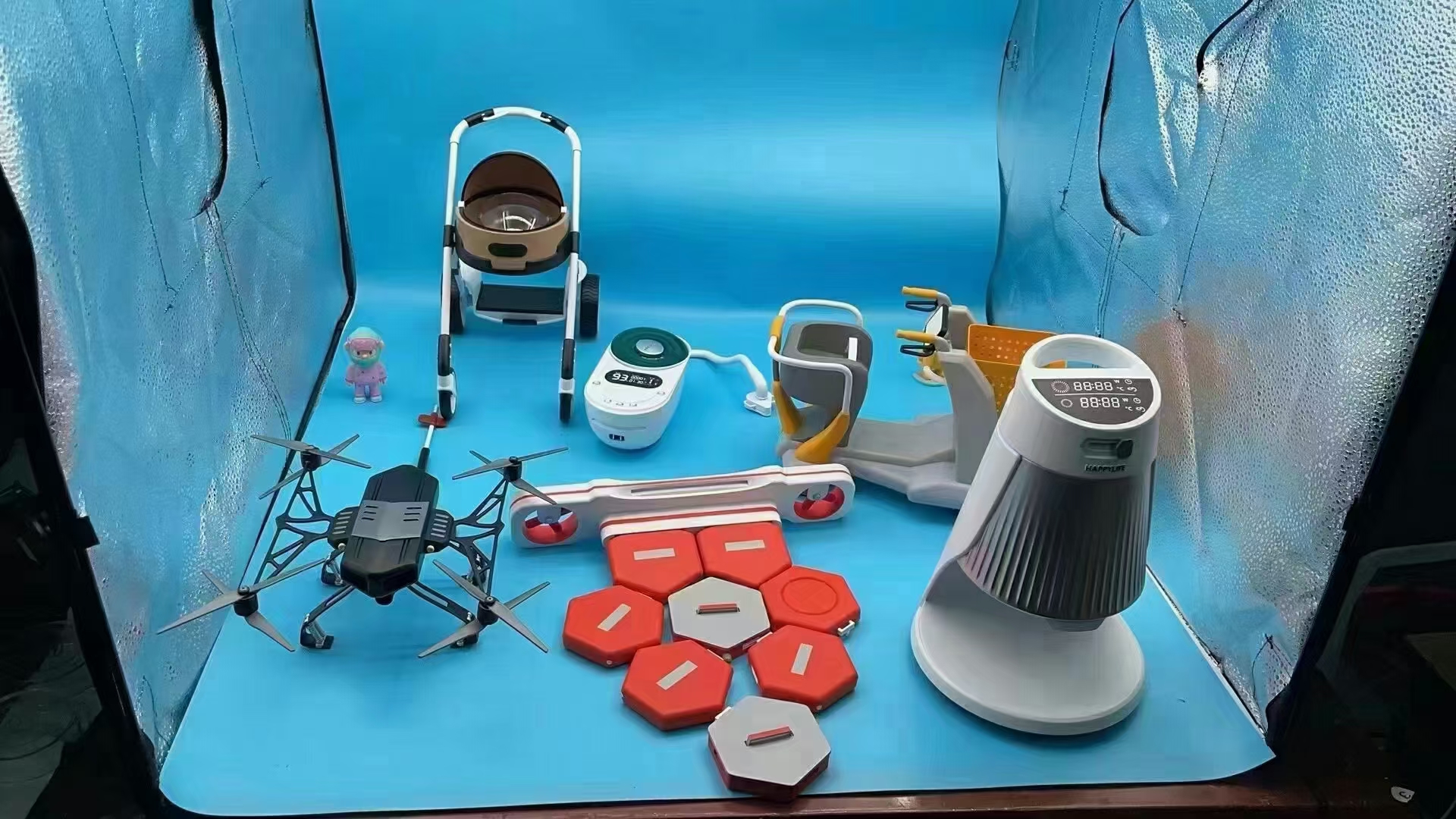

Ergonomic Handheld Prototype
Tough resin · assembly review · inserts and soft-touch finishing by requirement.

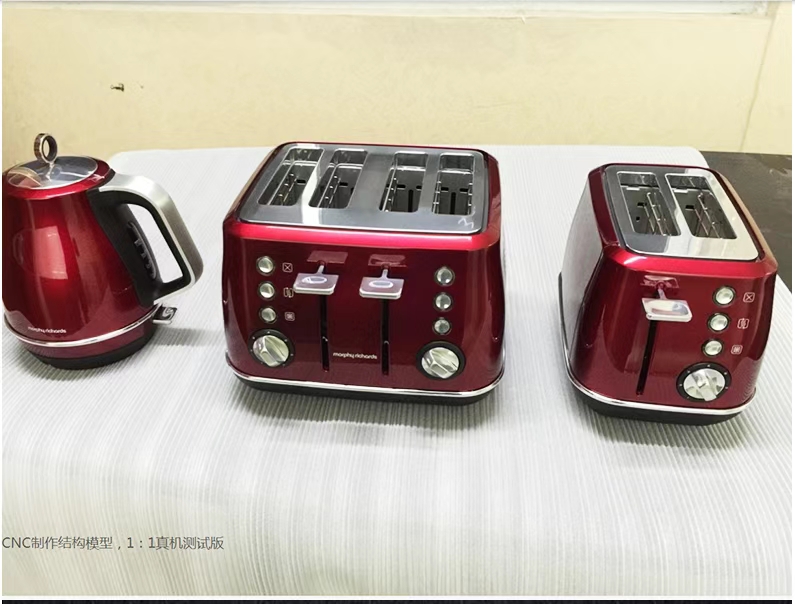

Detailed Electronics Enclosure
ABS-like resin · crisp interface features · painted cosmetic surfaces and fit verification.
10 / COMPLETE SLA ROUTE
From Liquid Resin to a Presentation-Ready Prototype
Mockup coordinates orientation, printing, cleaning, support removal, curing, cosmetic preparation, painting, inserts, assembly and inspection as one reviewed route.
Get an SLA quote↗PRINT / CURE / FINISH / VERIFYCONNECTED CAPABILITIES
What engineers ask.
What is SLA 3D printing?+
Stereolithography selectively cures liquid photopolymer resin layer by layer, followed by cleaning, support removal and post-curing.
What is SLA best used for?+
High-detail appearance models, smooth prototypes, clear components, detailed housings and master patterns.
Is ABS-like SLA resin the same as ABS?+
No. The name indicates selected similar characteristics, not chemical or long-term performance equivalence to molded ABS.
Can SLA parts be transparent?+
Clear resin can produce transparent or translucent parts, but orientation, support marks, polishing, coating and surface access determine the result.
How accurate is SLA 3D printing?+
Accuracy depends on machine, resin, part size, geometry, orientation, curing and finishing; critical dimensions are reviewed from the model and drawing.
Can SLA parts be painted?+
Yes. Support removal, sanding, primer and controlled painting can create presentation-quality cosmetic prototypes.
Is SLA suitable for functional testing?+
It can support selected fit, assembly and short-duration functional tests when the specific resin and environment are appropriate.
What files should I provide?+
Send a STEP or STP model, drawing, resin or performance requirement, quantity, finish, visible surfaces, critical dimensions and inspection needs.
SLA ENGINEERING REVIEW
Upload my SLA project ↗Get an SLA 3D Printing Quote
Upload the model, drawing, quantity, finish, visible surfaces and application requirements for resin, orientation, finishing and inspection review.
